"Easy Shrink" Shrinking Discs - Wolfes Metal Fabrication

Explanation of Options & Contents

SD3 - 3" Disc, for right angle die grinders or similar, has a 3/8" hole & is a direct replacement
for the disc in our SD3Kit (Mandrel Not Included)

SD3Kit - Fits standard right angle die grinders that accept 1/4" shank mandrels. Discs have
3/8" holes. Contents - SD3 Disc, 1/4" Shank x 3/8" Mandrel & Instruction Manual

SD458 - 4 1/2" Disc, Least Common Option, ONLY for some older 4" grinders that require a
5/8" hole (Disc Only), Makita Part #743009-6 pad, #224501-6 Nut may work if pad is needed

SD478 - 4 1/2" Disc, Fits 4 1/2" grinders, has a 7/8" hole & is a direct replacement for the disc
in our SD4kit. (backing pad recommended)

SD4Kit - Fits standard 4 1/2" grinders that have 5/8" - 11 spindle thread & use discs with 7/8"
holes. Contents - SD478 Disc, Backing Pad, Nut, Spacer & Instruction Manual

(Need a different thread size? We can swap it out)

SD478C - 4 1/2" Disc that has a Curved face for concave or reverse curved panels.
Fits 4 1/2" grinders, has a 7/8" hole & is a direct replacement for the disc in our SD4CKit.
(backing pad recommended)

SD4CKit - Has a Curved face for concave or reverse curved panels. Fits standard 4 1/2"
grinders that have 5/8" - 11 spindle thread & use discs with 7/8" holes. Contents - SD478C
Disc, Backing Pad, Nut, Spacer & Instruction Manual

(Need a different thread size? We can swap it out)

SD9 - 9" Disc, Fits Standard 7" or 9" sander/grinder/polishers & is a direct replacement for
the 9" disc in our SD9kit. (backing pad recommended)

SD9Kit - Fits standard 7" or 9" sander/grinder/polishers with a 5/8" - 11 threaded spindle.
Contents - SD9 Disc, Backing Pad, Nut, Spacer & Instruction Manual

Discounted Package Deals
Our Popular "Easy Shrink" Shrinking Disc Kits put together in money saving discounted packages!

DLX49 Basic - Includes the SD4Kit & SD9Kit (Used to be called our Deluxe or DLXKit)
Basic Starter Kit that will let you tackle many common jobs

DLX349 Advanced - Includes the SD3Kit, SD4Kit & SD9Kit
Advanced Kit that adds the ability to tackle tight area & hood/trunklid sandblasting warpage
repairs between & slightly under the backside bracing (shrink the blasted and stretched top
skin from the backside)

DLX3494C Expert - Includes the SD3Kit, SD4Kit, SD9Kit & the Curved SD4CKit
One step above our Advanced Kit that adds the ability to repair concave or reverse curved
areas. Helps you on your way to becoming an Expert Metalman!

DLX3494C +2 Metal Master- Includes the SD3Kit, SD4Kit, SD9Kit & the Curved SD4CKit as
well as 2 additional discs for each kit for multiple material types, spares or large shops
Our largest, most complete kit with the greatest discount & best value, used by true Metal
Masters!

Accessories
If you didn't order a kit originally, you need a replacement or want a spare

Adjustable Pin Wrench - Used to help tighten and loosen the Nuts
SD3 Mandrel - 1/4" Shank x 3/8" Mandrel
SD478 Backing Pad & Nut - Backing Pad, Nut & Spacer (Included in the SD4Kit)
SD478C Backing Pad & Nut - Backing Pad, Nut & Spacer (Included in the SD4CKit)
SD9 Backing Pad & Nut - Backing Pad, Nut & Spacer (Included in the SD9Kit)

A Detailed Instruction Manual is Included with all orders. It includes information on how the heat
shrinking process works, how to use the disc & important information about achieving a proper
mounting. It is highly recommended to read the manual before using the disc for safety,
knowledge, and to answer frequently asked questions.

We try to make sure we are offering everything our customers want and need, in convenient,
trouble free packages. If there is something that would improve our kits for you, or an option you
would like to see added, please let us know via our Contact US Page! Your requests do matter and
ARE listened to! We have added from request, the large backing pads, spacers (on occasion they
were needed), alternate thread sizes for the 4 1/2" discs, the pin wrench and the 4 1/2" Curved Disc.

Watch Our Old Original Video Demonstration!

"Easy Shrink"
Shrinking Discs, Kits & DLX Packages

New High Definition Repair Video on a 1941 Lincoln Continental!

See our Photo Album for more shrinking disc repair pictures and other useful pictures
and videos that we have added from customer request.

Just a few of our customers comments on our Shrinking Discs.

“The shrinking disc works fantastic, even for an amateur!!“

“Been doing paint and body 25 years. A definite must have for fabricators!!!”

“Amazing, I have been using a torch for 35 years, this is the way to go“

“Thanks 4 the AWESOME tool! It's the most-used tool in our shop! You're the best!“

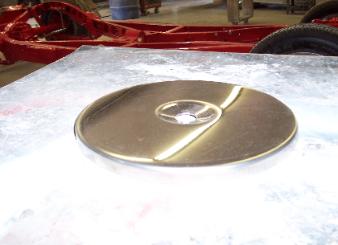

What are Shrinking Discs?

When using a Shrinking Disc, you are able to shrink overstretched areas and repair damaged sheet metal panels to a like new
condition, making for a better quality, longer lasting finish with little or no body filler at all! The secret to them, is they create the heat
that is needed to shrink through friction. They produce better results and are much more controllable than shrinking with a torch or a
solid tipped stud gun. When using a torch, you are directly controlling how much heat is being inserted, and were it is going. This is
easily and many times overdone, resulting in warping and further damaging the panel. With the shrinking disc and its large surface
area, it eliminates some of the guess work, especially when smoothing a lumpy panel by only touching the higher overstretched
areas! The heat is also more concentrated on the higher peaks of the damage and tapers off to the lower areas, which results in a
much greater accuracy of heat placement, in turn ending with a much smoother nicely blended panel.

Once you have started using the shrinking disc and get a little practice under your belt, it will make you feel more confident in your
metalworking skills when you can finish a panel with no body filler at all! The more you use it, and the better you get, the less filler
you have to spread and sand! It saves lots of time on sanding, keeps the shop cleaner from having less putty dust, and makes for a
better quality, longer lasting finish with little or no body filler at all!

How is it used?

In normal conditions, you would roughly straighten the panel, tap the dents and low areas up with a hammer and dolly and then make
a couple of passes with the shrinking disc, heating and cooling. Look over the panel to determine were more work is needed, and
using a hammer and dolly, rearrange or tap up any remaining low spots followed by a few more passes with the disc. After
completing several loops of this process, your panel will be smooth, and back to normal surface tension.

When using the shrinking disc after welding in a patch panel to arrive at an almost invisible seam, you should start by carefully
grinding the bulk of the weld. While doing this, you want to minimizing excessive heat buildup and prevent thinning of the panel itself.
Then the HAZ (Heat Affected Zone, the area that was discolored while welding) needs to be stretched by using a hammer and dolly
(with slightly more contour than your panel), striking the hammer "On Dolly". This is required, because the welding process heat
causes shrinking just like the shrinking disc does, although it happens in an unwanted and uncontrolled manner. After stretching the
HAZ, it will be closer to the original profile, but still lumpy, uneven and possibly over stretched from the various hammer blows. Now is
when the shrinking disc works its magic. By using the shrinking disc over this area, and blending around the edges if needed, it will
only touch the higher overstretched areas as mentioned before, and shrink them down so the entire weld area is smooth, and has
the same surface level. More details on using the discs included in the Instruction Manual.

How does Heat Shrinking work?

Shrinking occurs after heating (causing expansion) and cooling metal (resulting in contraction). This happens because while a panel
or sheet of metal is being heated, the heated area is trying to expand. The surrounding cold metal is containing the majority of the
expansion and holding it in, preventing the expansion from happening. When cooling the panel, the heated metal contracts (which
the surrounding metal cannot prevent, in turn shrinking the heated area. Important aspects of this method are heating and cooling
fairly quickly. Slow heating is usually more of a problem than slow cooling, as it will let the heat disperse into the entire panel before
any expansion containment has taken place, reducing the shrinking discs effectiveness greatly. If heating happens quick enough,
some shrinking can occur with only room temperature cooling, but is greatly accelerated and multiplied by cooling with either
compressed air or water (squirt bottle or rag), but water generally tends to provide quicker cooling.

These shrinking discs work well on steel, stainless, aluminum, brass and may on some other metals. (it is recommended to use
separate discs to prevent cross contamination) Also it only touches the higher overstretched spots that need to be shrunk. So you
are able to shrink an area on a panel without worrying about making the problem even worse like you can with a torch. The shrinking
disc also works excellent on removing those "oil can" dents that were caused by overworking and stretching the metal too much!

Which size disc should I get, 3", 4 1/2" or 9"?

The small 4 1/2" disc has a low initial investment (almost everyone has a 4 1/2" grinder), and works great on small parts (for example,
stainless trim, grille shells, motorcycle tanks, etc), light damage, tight spaces, or after primer and block sanding, it works great for
catching any high spots that were overlooked, instead of beating them in and covering them with filler, without disturbing much of the
surrounding primer (as it is more difficult with the large disc).

The large 9" disc excels when working large, low to medium contour panels such as, hoods, roof, door, trunk or heavily damaged
panels, because of its greater working surface area. Compare it to block sanding, were on a large panel, a longer sanding block
makes it straighter and works more area at one time, but the small ones still work and are needed for some situations as well.

Our newest addition to the shrinking disc line is the 3" disc. The SD3 Disc and Kit were designed to compliment the larger shrinking
discs for extreme fine tuning and to get into hard to reach areas. If there is room for a larger disc, using the larger disc is
recommended, as you will have much better and faster results. After personally using the larger shrinking discs for many years and
talking to customers, I found that a smaller shrinking disc would be a great compliment to the shrinking tool arsenal. The SD3 disc
would not be a good option to try to repair an entire 1/4 panel or heavily damaged area, it would take too long and/or just not work
very well. However, it is very handy, especially when repairing sandblasting damage from the outer skin being stretched when it is
blasted from the backside between the bracing. This creates a “Hard Edge” of stretching from the blasting process because of the
bracing blocking some of the panel. The small lipless discs allow you to get into the open areas between the bracing and even
slightly under to finish blending the repair as far as the blasting process was able to stretch the sheetmetal.

Do I need Spare Discs?

If purchasing our Deluxe Kit or larger kit, you are allowed to purchase up to 2 of each size of discs for spares at 1/2 price at the time
of purchase. The discs themselves will last a long time, long enough that we don't have an actual lifespan to give you, and since
usage varies greatly for different people. The only reasons you may choose to purchase spares are, in case you drop and bend or
otherwise damage a disc, loan it to a buddy and he fails to return it before you need it (heard this more than once!), or the primary
reason being, if you are planning on using them on multiple different materials such as mild steel, aluminum and stainless steel. You
can use the same disc, however you want to be sure you clean it very well to prevent the possibility of embedding tiny steel particles
that can rust or cause corrosion into your stainless or aluminum panel. To prevent that from even being a possibility, it is
recommended to use different discs on different materials.

Why choose our "Easy Shrink"™ Shrinking Discs over others?

Our "Easy Shrink"™ discs are made using a Special High Grade Stainless Alloy & Manufacturing Process, that creates a long lasting,
low galling, crack resistant, safer and higher performance disc compared to older designs. Brian Wolfe (Owner) is the Inventor of the
smaller stainless shrinking discs, the correct 4 1/2" size in particular (as well as the new 3" disc), but was then followed by others.
The larger discs have been around for ages, made by multiple different manufacturers in several different styles. Over the years of
using and providing shrinking discs, we have made changes and improvements to the material and manufacturing process that we
use, to provide you with an improved quality, safer and better performing disc, as well as introducing a smaller size disc to compliment
the larger one and for use in special situations. Many people prefer our smooth shrinking discs over the wavy discs for several
reasons. It is safer with the flanged edge than the "saw blade" like edge the wavy discs have. The ridges are not necessary, they
create unneeded vibration and noise as the shrinking happens because of the heat caused by friction. The ridges can actually lead
to premature failure and cracking due to wearing thin only on the higher raised areas of the disc. We have also worked hard to
improve the quality control checks following manufacturing before delivery. I, Brian Wolfe, will personally provide great friendly
customer service to deal with problems or answer questions with quick responses with an importance to customer satisfaction. We
have also put alot of time, effort and testing into making reasonably priced quality "Kits" that generally include everything that you
need to get started easily and conveniently with the least amount of hassle.

If your not satisfied and/or you find the competitors disc better, send it back & I will give you a refund!
No one else offers this!

Copyright © 2013-2019 Wolfes Metal Fabrication. All Rights Reserved. - www.wolfesmetalfabrication.com/sdisc.html

We encourage and allow the sharing of the information contained on this webpage, in whole or part, for and "ONLY" for educational purposes
(internet forums, online & printed educational publications, etc), by including the above notice of Copyright & Reference to this page, or by linking to it directly.
All for profit & other purposes of reproducing this content, in whole or part, are strictly prohibited, without individual written consent, punishable to the full extent of the law.

Add Extra Discs
at 1/2 Price!

When purchasing
a DELUXE Kit!

Made using a Special High Grade Stainless Alloy & Manufacturing Process, that creates a long
lasting, low galling, crack resistant, safer and higher performance disc compared to older designs.
Works on steel, stainless, aluminum, brass
Creates Heat through Friction to allow shrinking of the sheetmetal
Works with compressed air or water cooling (spray bottle or rag)
Is good for shrinking, smoothing, blending and relieving surface tension created from damage
Have sizes and Kits to fit standard 4 1/2" & 7" or 9" electric sander/grinder/polishers and right angle
air die grinders (3" disc)
3" Discs, Recommended RPM 20,000 - 22,000, Max RPM 22,000
4 1/2" Discs, Recommended RPM 10,000 - 13,000, Max RPM 13,300
9" Discs, Recommended RPM 3,000 - 6,000, Max RPM 6,500

Like our Products or
Services?
Post comments/pictures on
our Facebook page!
Then "Like" and Share
with your Friends!

Shrinking Disc Kits
Individual Kits

The Adjustable Pin Wrench is to Help Tighten and
Loosen the Nuts (one size fits all)

Swap SD4kit nut to fit your grinder.
Email us with your grinder model # if you need assistance
picking proper size, or if you need a size not listed.

Shrinking Discs
Discs ONLY& Accessories

Shrinking Disc Deluxe Kits
Discounted Package Deals

Add Spare Discs at 1/2 Price!
When Purchasing a Deluxe Kit
Please Limit to 2 discs per size per Order.
Only Available HERE with DLXKit Online Purchase.

Must Purchase a DLXKit that includes the same size disc kit
that you are ordering spares for.

Spare Discs are useful for large shops, & when using them on
multiple materials such as Steel, Stainless and Aluminum to
prevent cross contamination of steel particles.

Too Many Options?
Pick a DLXKit from here & you will be good to go!

NEW! Best Value!

International
Buyers
Read this first!

SD4CKits & SD478C
Are NOW Available!
