 1 Cutting out the main box for the Rotary Tube cutting attachment in a foldable piece. |
 2 Folded up ready to weld. Threaded motor mount adjusting plate on the table also. |
 3 Assembled to test fit before finishing. |
 4 Assembled to test fit before finishing. |
 5 Had to turn down the length of the bronze bushings from 1 1/2" to 7/8". |
 6 Heated interferance fit between the tube shaft and the chuck mounting plate. Now truing it up and turning the step. |
 7 Finished up, painted and assembled. |
 8 Video of the first test cut, with some holes in a piece of 1 1/2" round tube. Cut quality was massively improved after adding the support bearings under the tube. |
 9 Parts cut from 1 1/2" square tube in the next videos. The chair is just a fun test piece, and the other is a gusset for an ATV swingarm. |
 10 Test "Chair" part cut from square tube. Just a fun test part to show the capabilities. |
 11 Showing the scrap and parts from cutting gussets from 1 1/2" square tube. |

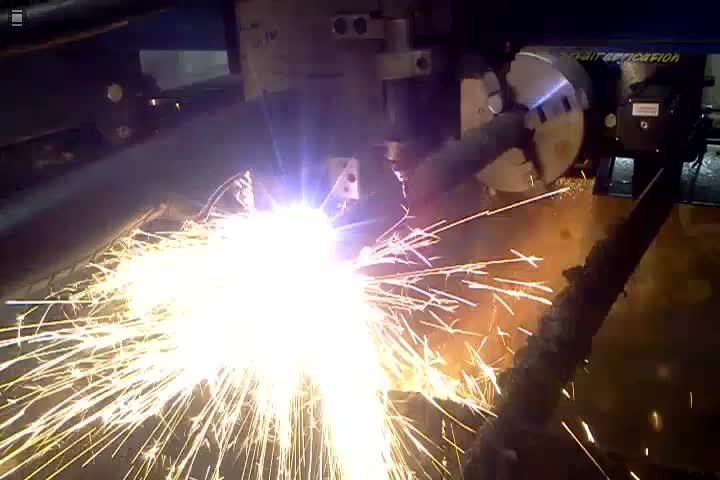

 12 Cutting some test gussets from 1 1/2" square tube for ATV swingarms. |

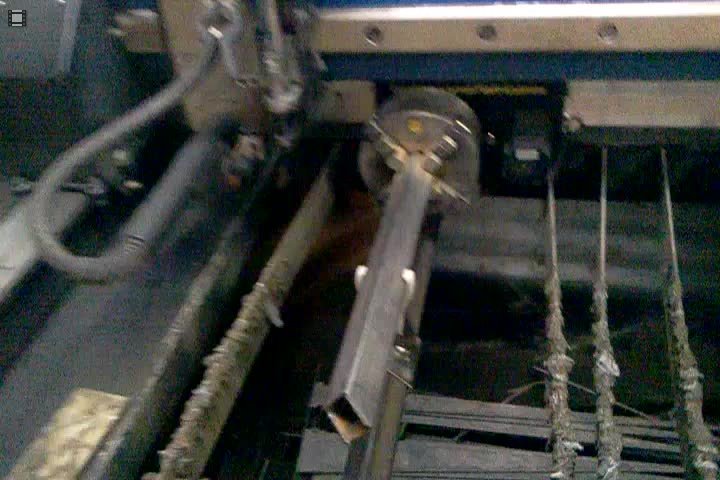

 13 A Dry run (no torch) to show the speed and precise locating of the machine while lifting for the corners and cutting parts. |
 14 A test "footpeg" out of 1 1/2" round tubing. |

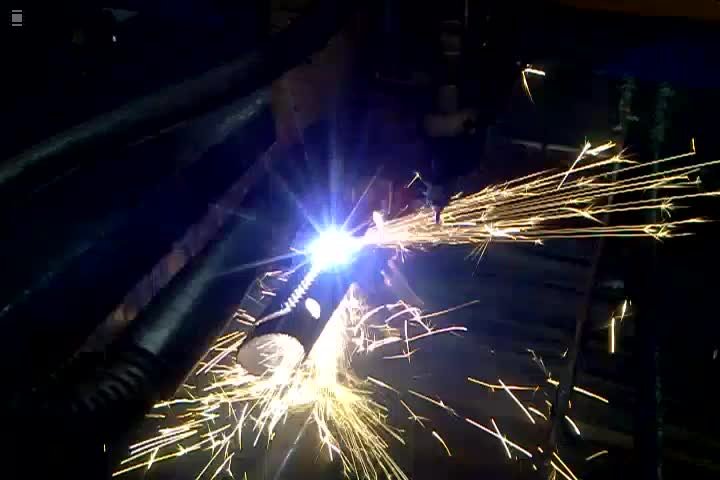

 15 Video of the test "footpeg" out of some scrap 1 1/2" round tubing. |
